Flow Seeker

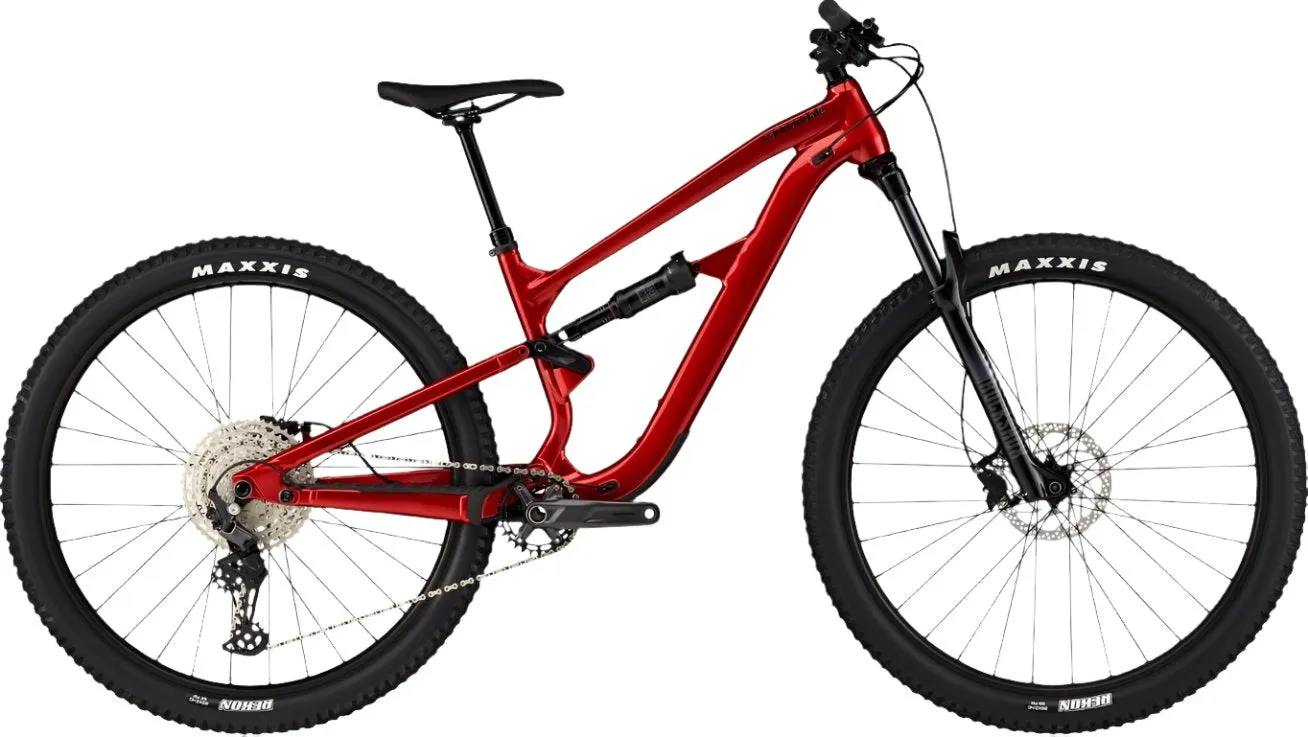

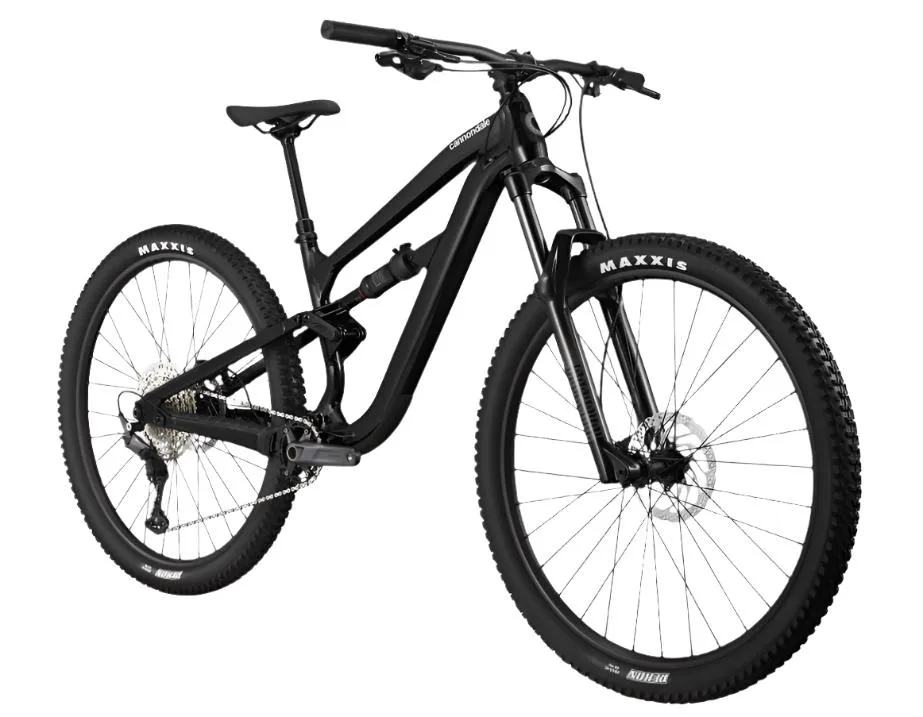

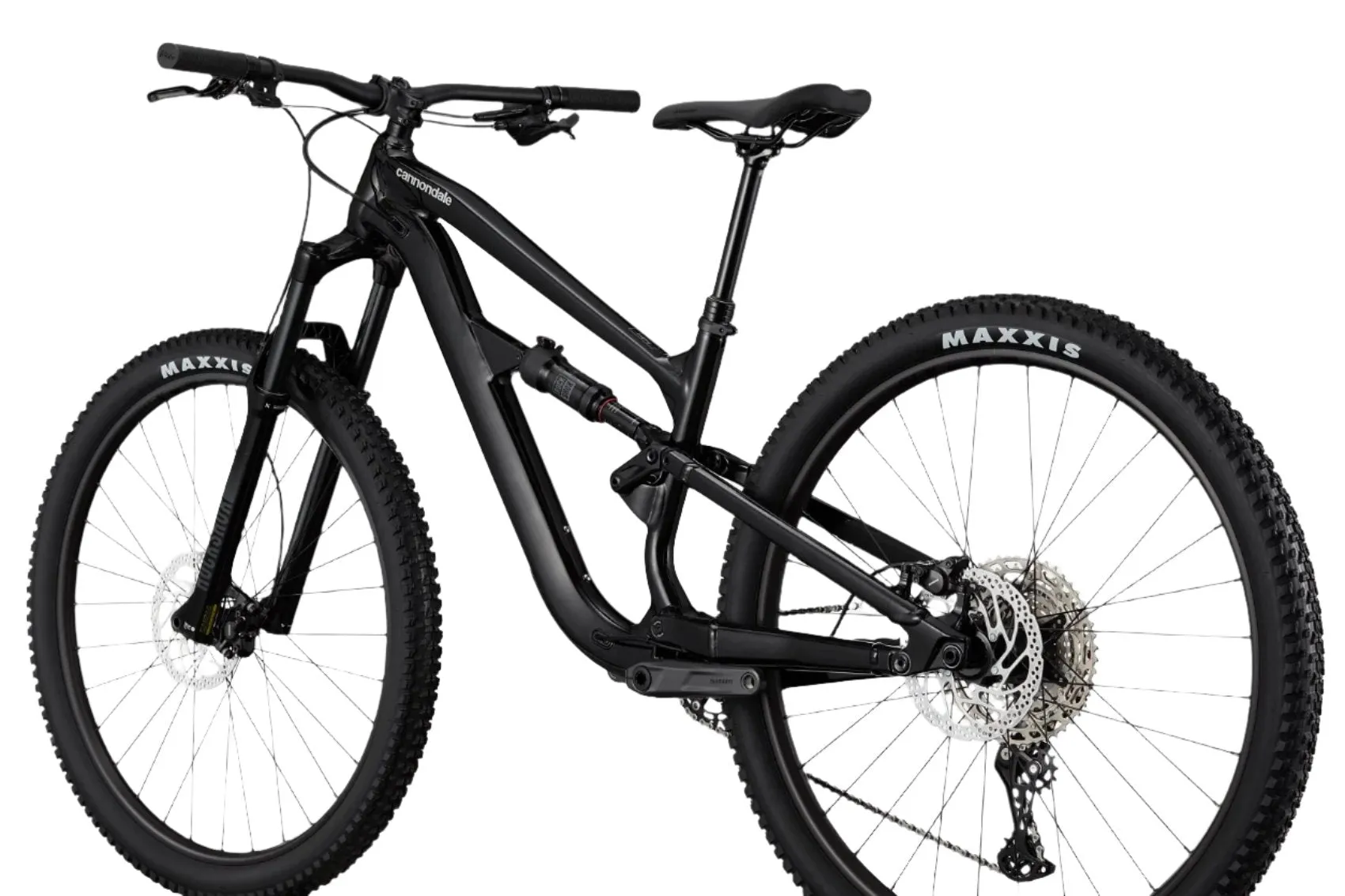

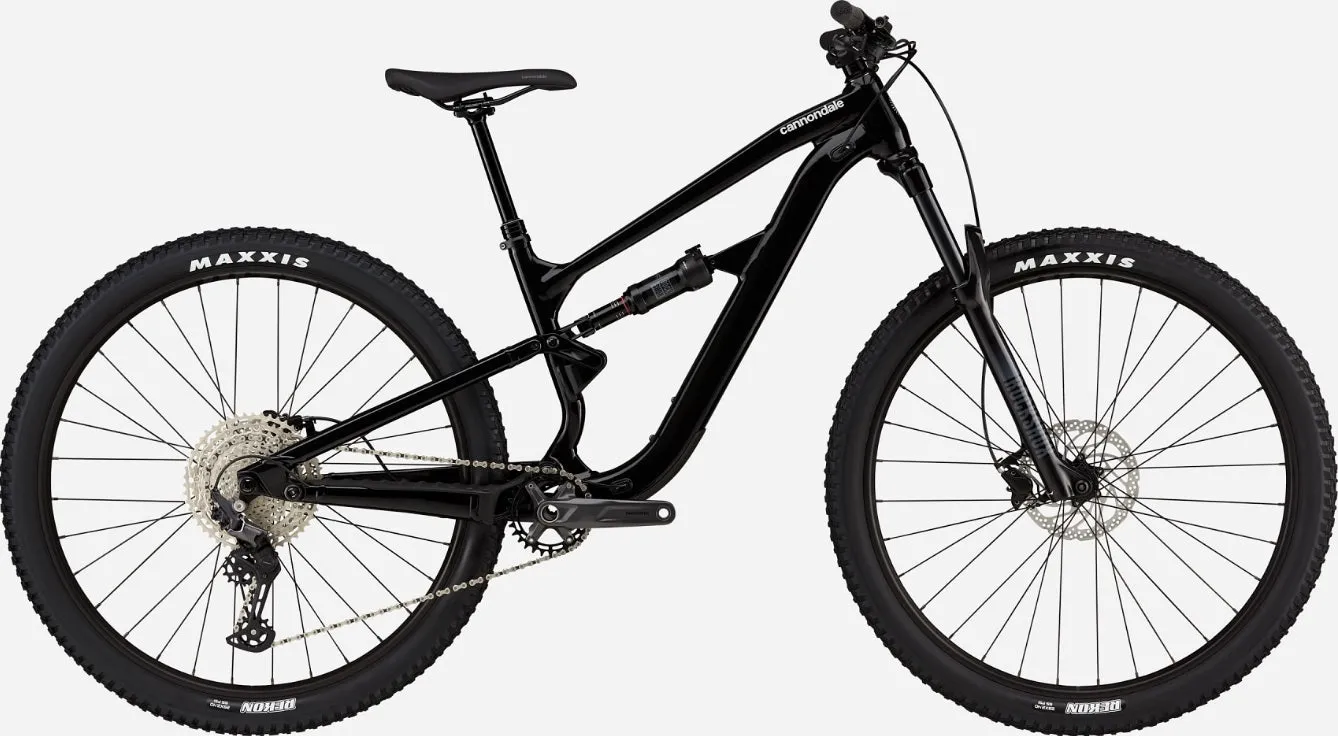

The Cannondale Habit 4 Full Suspension Mountain Bike is a trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun! The Cannondale Habit 4 Full Suspension Mountain Bike thrives out in the elements and is built for pure, unadulterated trail riding fun!
Highlights
- SmartForm C1 Alloy Frame / Shimano Deore 12-speed drivetrain
- Rockshox Recon RL 140mm fork / Deluxe Select shock
- Shimano hydraulic disc brakes discs / TranzX dropper post
Specs
-
Platform -
-
Model Name - Habit 4
-
Model Code - C23401U
FRAMESET
-

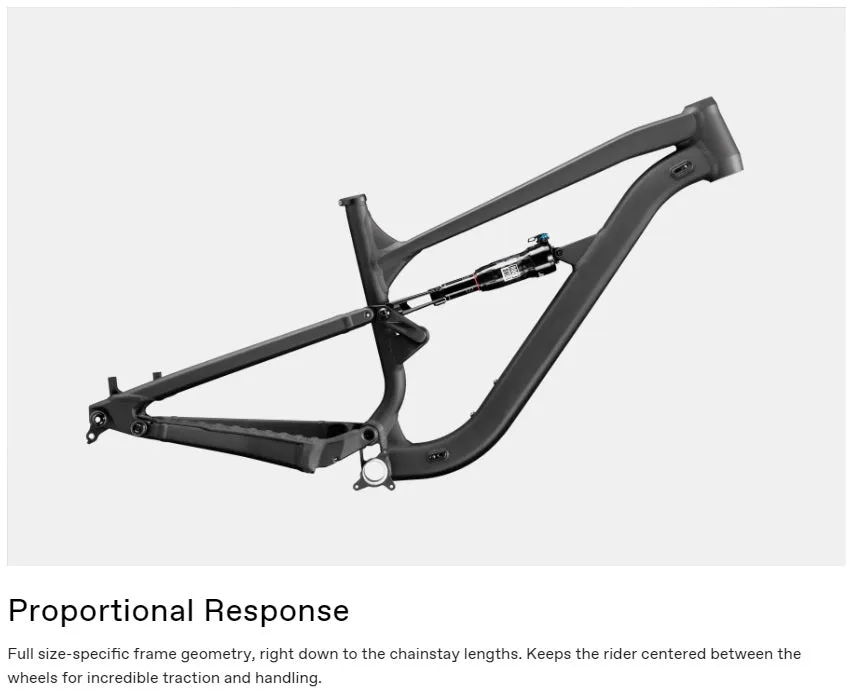

Frame - Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
-
Fork - RockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
-
Headset - Integrated Sealed Bearing, Tapered
-

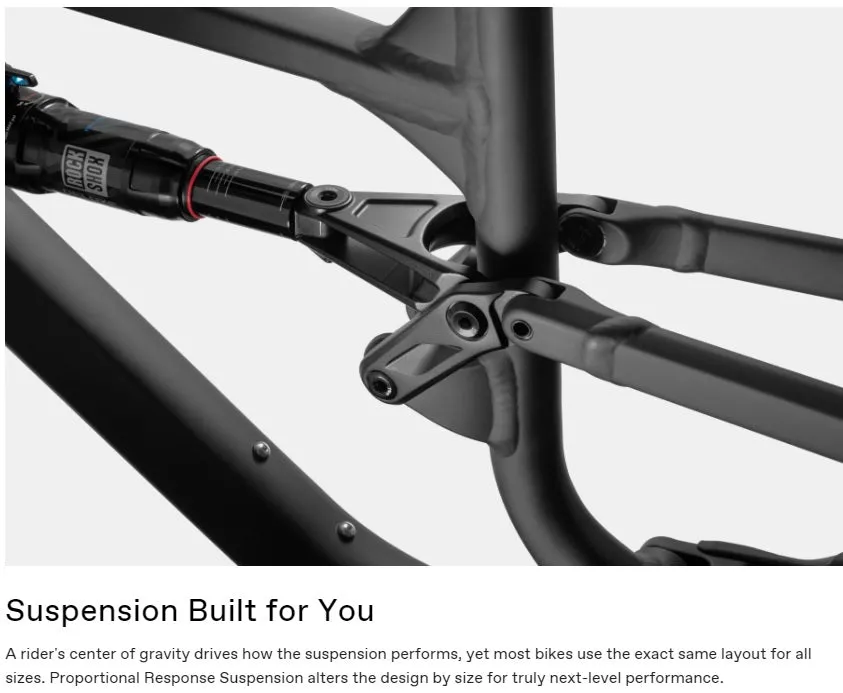

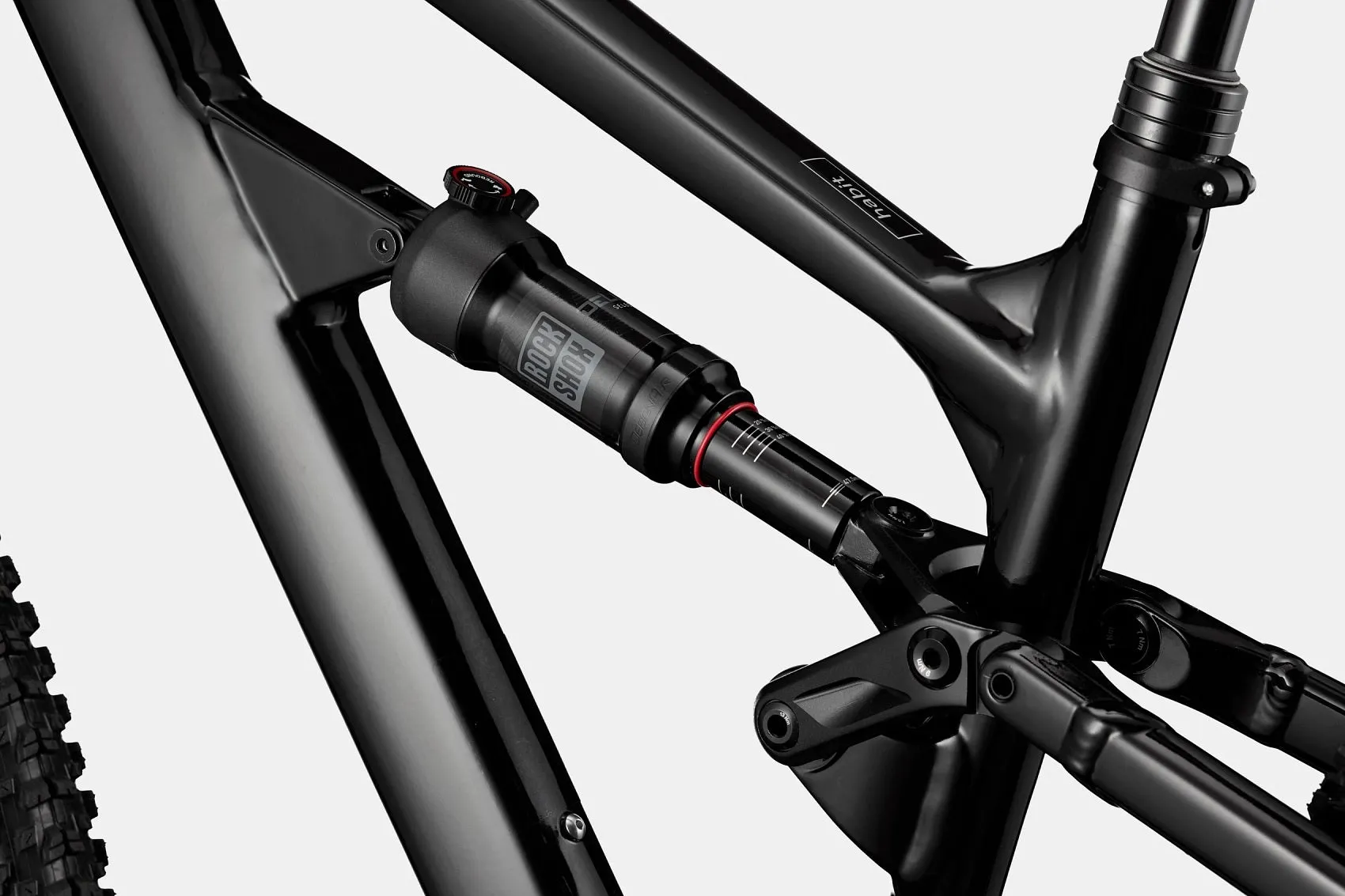

Rear Shock - RockShox Deluxe Select, DebonAir, adjustable rebound
DRIVETRAIN
-

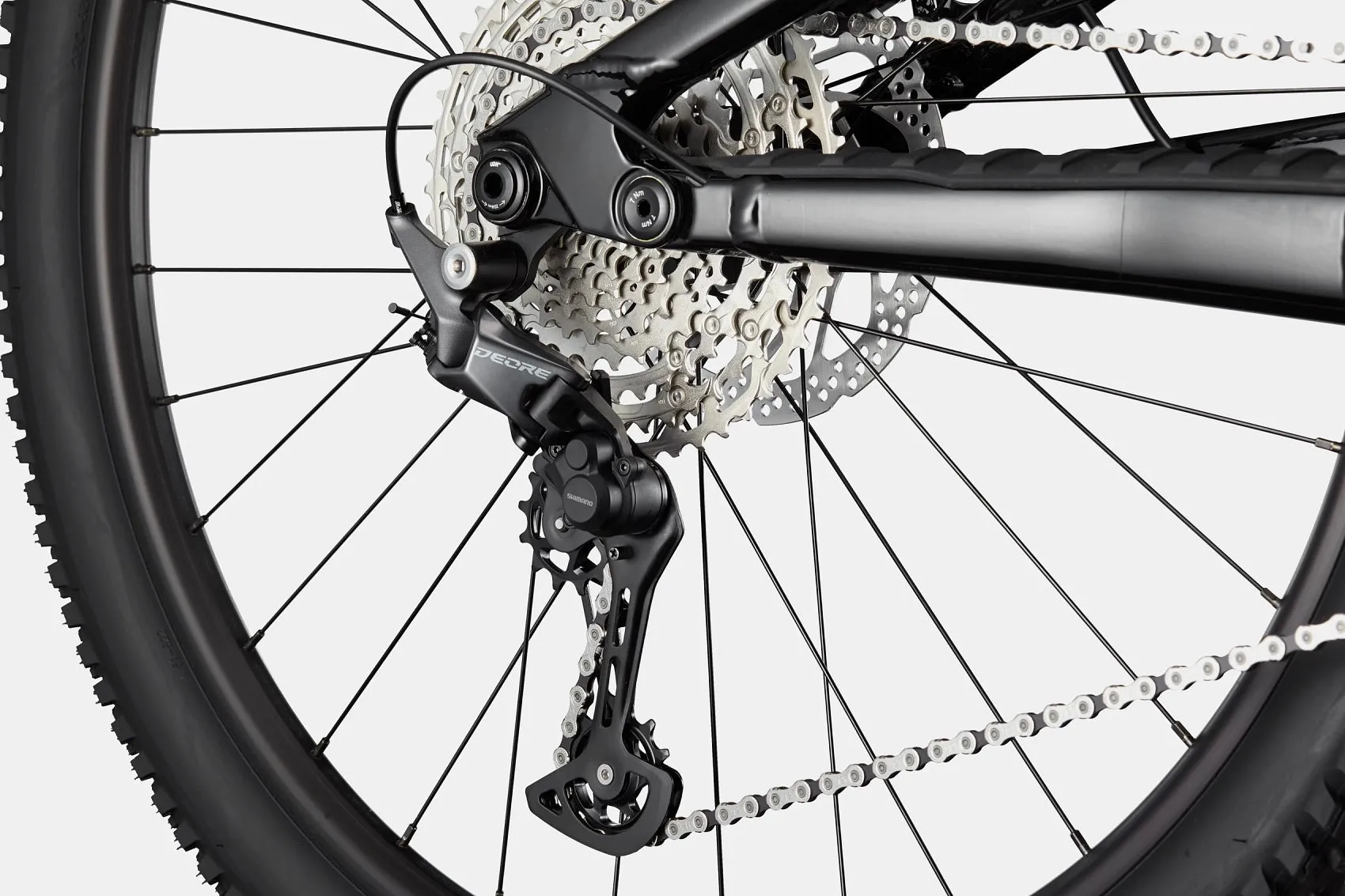

Rear Derailleur - Shimano Deore M6100
-
Shifters - Shimano Deore M6100, 12-speed
-
Chain - KMC X12, 12-speed
-

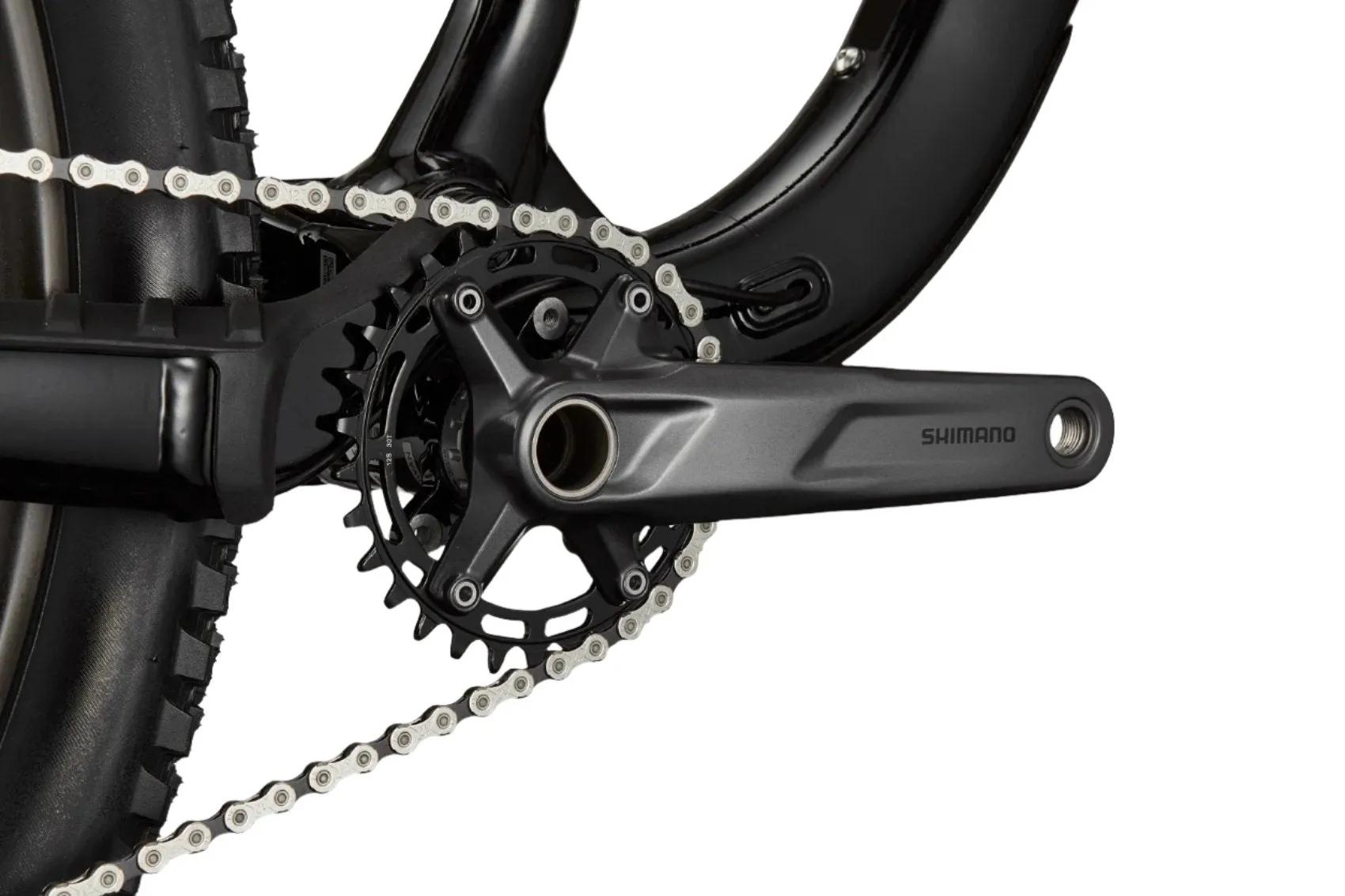

Crank - Shimano, FC-5121, 30T, 55mm chainline
-
Rear Cogs - Shimano Deore M6100, 11-51, 12-speed
-
Bottom Bracket - Shimano BSA 73
BRAKES
-

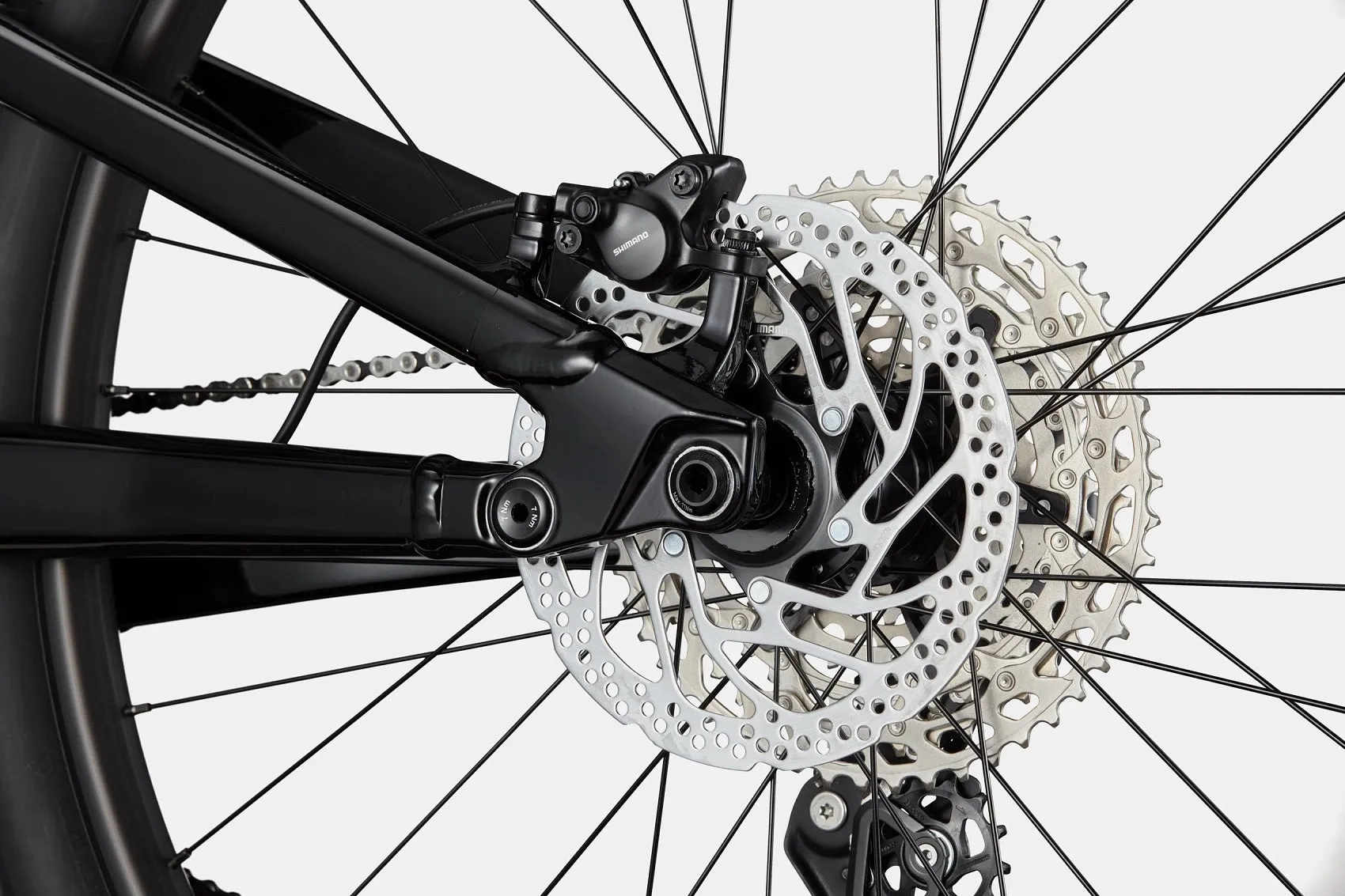

Brakes - Shimano MT200 hydraulic disc, 180/180mm RT30 rotors
-
Brake Levers - Shimano MT200 hydraulic disc
WHEELS
-
Rims - WTB STX i25 TCS, 32h, tubeless ready
-
Spokes - Stainless Steel, 14g
-
Tires - Maxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready
-
Tire Size - 2.4
-
Hubs - (Front) Shimano MT400, 15x110mm thru-axle / (Rear) Shimano MT410, 12x148mm thru-axle
-
Front Tire - Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), 60TPI EXO
-
Rear Tire - Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), 60 TPI EXO
COMPONENTS
-

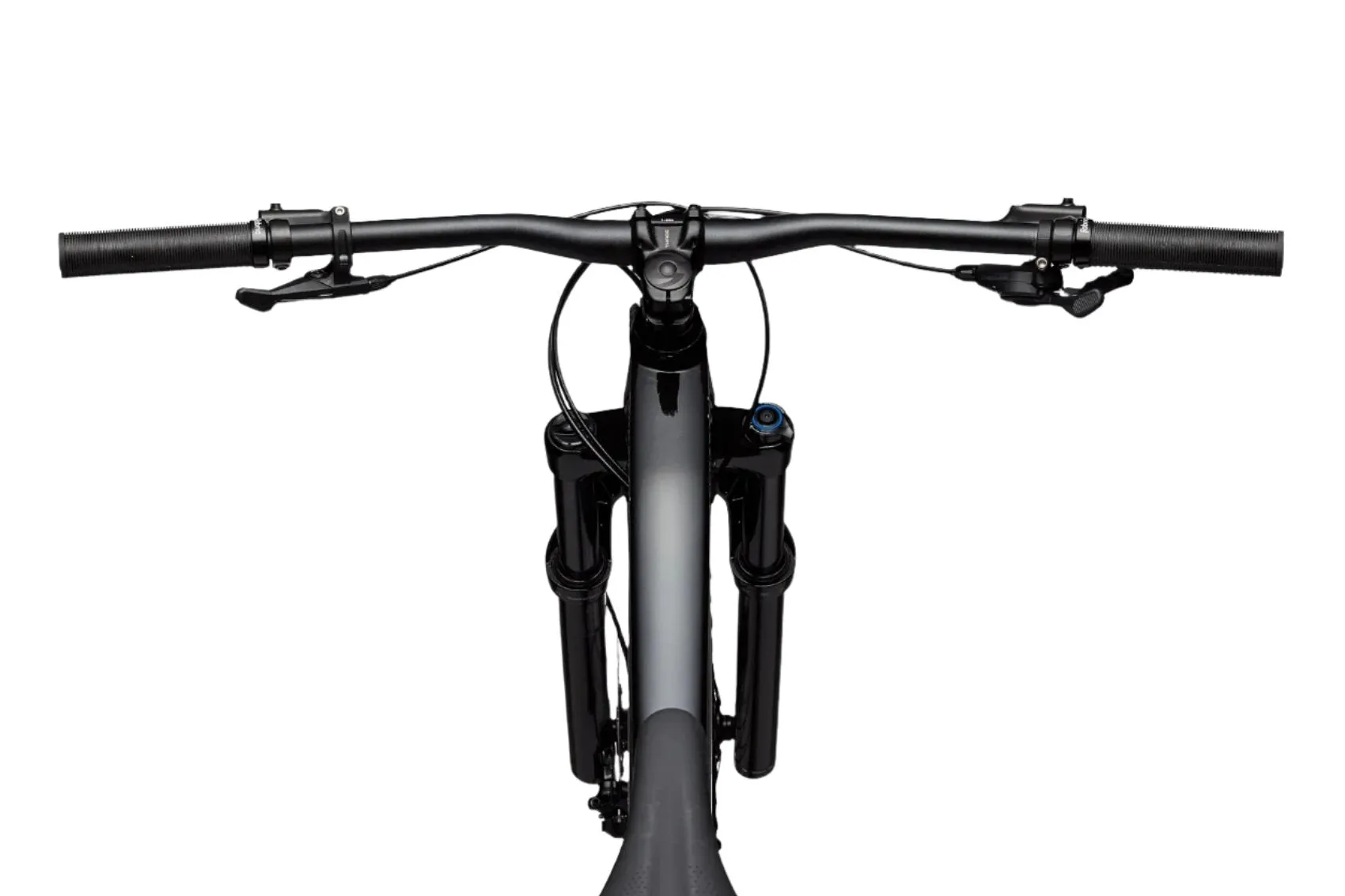

Handlebar - Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
-
Stem - Cannondale 3, 6061 Alloy, 31.8, 0°
-
Grips - Cannondale Locking Grips
-
Saddle - Cannondale Ergo XC
-
Seatpost - TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
*Specifications subject to change without notice
-
Mack Cycle recommends having your bike assembled by your local, authorized Cannondale retailer, who will charge an assembly fee.
